Bobbin coils

BOBBIN COILS IN ALL SHAPES AND SIZES

Unlike air coils, bobbin coils, as the name already suggests, have a ferromagnetic body or coil former made of different material. The advantage of solenoid bobbin coils: higher inductances can be generated.

RANGE OF CUSTOMER-SPECIFIC BOBBIN COILS

Micro coil (Magnetic core)
Micro coil (Magnetic core)

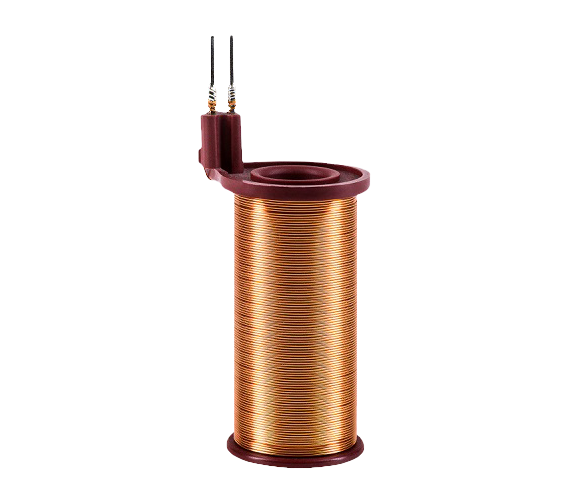

Windings on bobbins
Windings on bobbins

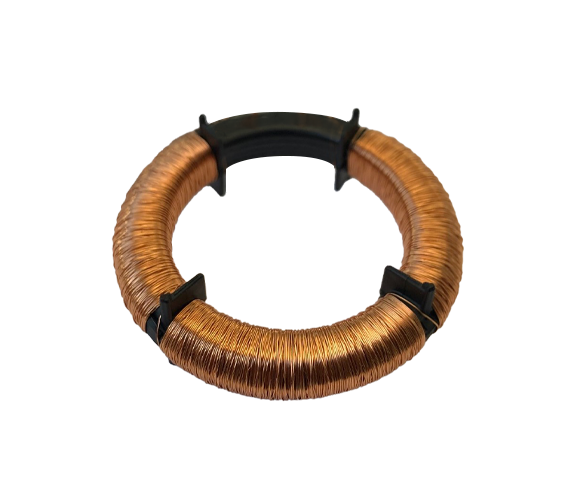

Toroidal coil
Toroidal coil

PRODUCTION OF CUSTOMER-SPECIFIC BOBBIN COILS AT KUK

Whether complicated to manufacture or adapted to special requirements - thanks to in-house winding lines, KUK produces the right bobbin coil for you. The bobbin coils are partly manufactured on standard coil formers. However, we mainly wind onto customer-specific coil formers.

Whether complicated to manufacture or adapted to special requirements - thanks to in-house winding lines, KUK produces the right bobbin coil for you. The bobbin coils are partly manufactured on standard coil formers. However, we mainly wind onto customer-specific coil formers.

We wind bobbin coils from enamelled copper wire or alternative conductor material and thus achieve optimum results in customer-specific applications.

We will be happy to advise you on the optimum core material for your solenoid bobbin coil. You can also benefit from our many years of cooperation with specialised suppliers.

Learn more
  • Different winding methods
  • With pin mounting
  • Connection of litz wires, plugs, etc.
  • Twisted wire ends

CHALLENGES WITH MICRO COILS

IMPACT OF THE MAGNETIC CORE

The magnetic core is a crucial point for the performance of micro coils. Various materials come into question here. Product Manager Roswitha Ritter gives a brief insight. She is our expert, especially when it comes to miniature coils and sensors for medical technology.

SMOOTH OUTSOURCING FOR HANDPIECE FOR EYE SURGERY

Martin Bürki, founder and partner Bürki inno med

The collaboration with KUK Group is an enormous relief for us.

Martin Bürki, founder and partner Bürki inno med
Details
